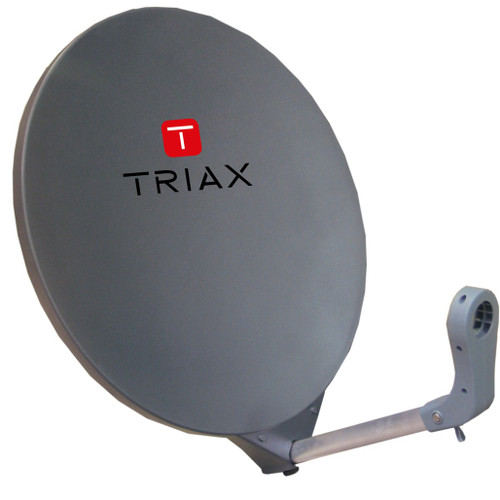

DAP711 Triax Fibre Glass Dish grey Pole mount dish

CHARACTERISTICS
Efficiency    70
Elevation range    10-55 °
Offset angle    26 °
Type    DAP 711
X-polarisation    > 27 dB
Dish size    70...79
FREQUENCY
Frequency range    10.7 - 12.75 GHz
GAIN
Gain @ 11.7 GHz    36,5 dBi
Gain @ 12.625 GHz    37.3 dBi
Noise temperature    < 35 °K
MECHANICAL
Product Depth    124 mm
Dimensions carton (H x D x W)    625x720 mm
Finish    Alu arm
Packaging Depth     0,006 m
Packaging Height    0,001 m
Total Weight     4,940 kg
Packaging Width    0,007 m
LNB holder    Plastic
LNB size    Ø 40 mm
Mast bracket diameter    Ø 40-60 mm
Main Material    Fibre glass
Net Weight    4,940 kg
Reflector type    Offset
Remarks    1 U-Bolt for mast mount 2nd U-Bolt P/N 362700
Width (cm)    66 cm
Windload @ 42 m/s    600 N
Height (cm)    72 cm
