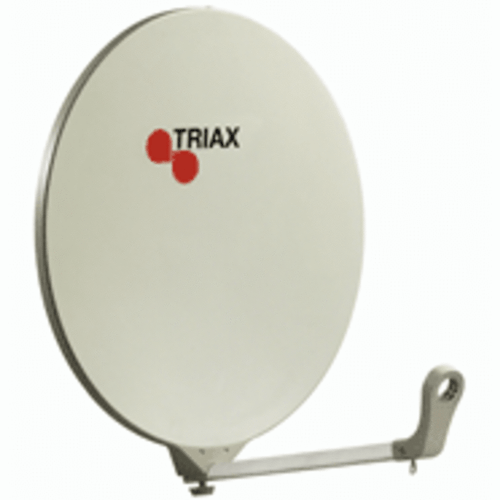

DAP600 Triax 60cm fibreglass white pole mount satellite dish

CHARACTERISTICS
Efficiency    70
Elevation range    10-55 °
Offset angle      26 °
Type    DAP 60
0
X-polarisation    > 27 dB
Dish size    60...69
FREQUENCY

Frequency range    10.7 - 12.75 GHz
GAIN
Gain @ 11.7 GHz    35,5 dBi
Gain @ 12.625 GHz    36.0 dBi
Noise temperature    < 35 °K
MECHANICAL
Dimensions carton (H x D x W)    560x610 mm
Finish    Alu arm
Packaging Depth    0,006 m
Packaging Height    0,001 m
Total Weight     4,300 kg
Packaging Width    0,007 m
LNB holder    Plastic
LNB size    Ø 40 mm
Mast bracket diameter    Ø 40-60 mm
Main Material    Fibre glass
Net Weight    4,300 kg
Reflector type    Offset
Remarks    1 U-Bolt for mast mount
Width (cm)    56 cm
Windload @ 42 m/s    378 N
Height (cm)    61 cm
